Aluminum Casting Defects: A Comprehensive Guide

Casting defects increase scrap, rework, warranty claims, and lead-time risk. Understanding root causes—whether related to melt quality, mold design, filling dynamics, or solidification—helps engineers and buyers specify processes that deliver consistent, pressure-tight, dimensionally stable aluminum components.

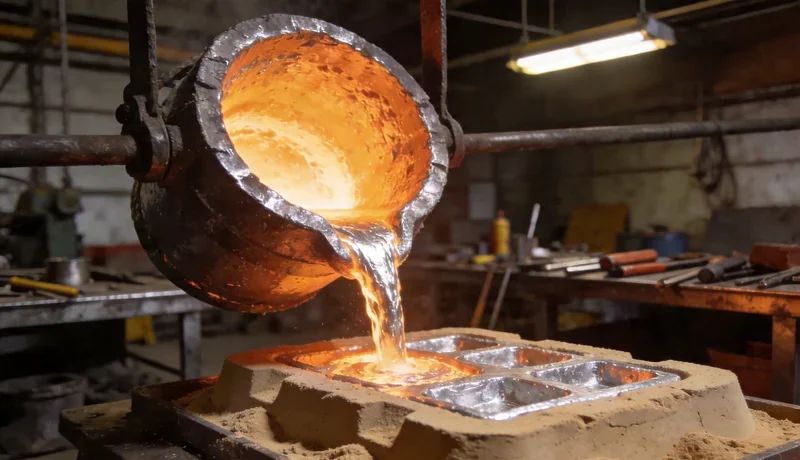

Introduction

Aluminum castings power automotive, aerospace, industrial, and electronics applications, but even mature processes produce defects when variables drift. Defects fall into broad categories: gas-related porosity, shrinkage-related voids, inclusion contamination, fill-related cold shuts, thermal stress cracks, surface imperfections, and dimensional variation. Early collaboration between design, tooling, and quality teams prevents costly discovery at machining or assembly. For process fundamentals, see our aluminum casting guide; for alloy trade-offs, see the material comparison.

Porosity (Gas & Shrinkage)

Gas porosity forms when hydrogen, air, or combustion products cannot escape before solidification. Aluminum melts readily absorb hydrogen; moisture on charge materials, fluxes, or tools converts to steam and amplifies gas content. Turbulent filling and inadequate venting in die casting entrap air in thin-walled regions. Shrinkage porosity, by contrast, results when liquid feed paths close before solidification completes, leaving internal voids—often near thick sections or isolated hot spots.

Blistering during heat treatment is a related failure mode: subsurface gas expands when solution temperatures are applied, bulging the surface. Die casters often limit T6 on HPDC parts unless vacuum assist, squeeze pins, or impregnation are specified. Reduced-pressure tests (Straube-Pfann or similar) on melt samples provide early warning before parts are poured.

Prevention: rotary degassing with inert gas, dry flux and ingot storage, clean returns, optimized gating and overflow vents, and vacuum-assisted die casting where leak-tight integrity is critical. Detection: X-ray radiography, real-time radioscopy, sectioning, and pressure testing per customer specifications. For structural programs, agree porosity acceptance criteria with the customer before PPAP submission.

Shrinkage Defects

Open shrinkage appears as external sinks or craters; closed shrinkage porosity remains hidden beneath surfaces. Both stem from inadequate feeding during directional solidification. Thick sections solidify last and pull metal from surrounding regions; without risers, chills, or sequential solidification, voids form. Hot spots from uneven mold cooling worsen feeding problems.

Engineering solutions include riser and chill design, reducing section thickness transitions, and using casting simulation to place feeders before tooling build. Permanent-mold and sand processes allow more flexible feeding than high-pressure die casting, where porosity control relies heavily on shot profile, venting, and overflow design.

Inclusions & Dross

Oxide films, refractory particles, slag, and unmelted grains act as stress concentrators and leak paths. They enter the melt from dirty charge, eroded furnace linings, or turbulent transfer. Poor skimming and careless pouring transfer dross into the mold.

Maintain melt cleanliness with filtration (ceramic foam filters in gravity casting), cover fluxes where appropriate, and minimize metal transfer distance. Ladles and pouring systems should reduce oxide folding. Regular furnace maintenance and disciplined handling procedures lower inclusion rates more than downstream inspection alone.

Cold Shuts & Misruns

Cold shuts form when separate metal fronts meet too cold to fuse, leaving a line or incomplete bond. Misruns occur when metal fails to fill the cavity—common in thin walls, long flow paths, or low pouring temperature. Excessive die lubricant, worn vents, or blocked gates also restrict fill.

Increase melt and die temperature within alloy limits, enlarge gates and runners, improve vent capacity, and redesign thin sections for more uniform fill. High-pressure die casting benefits from shot-end profiling and overflow tabs that capture cold front metal. See our quality control services for production monitoring options.

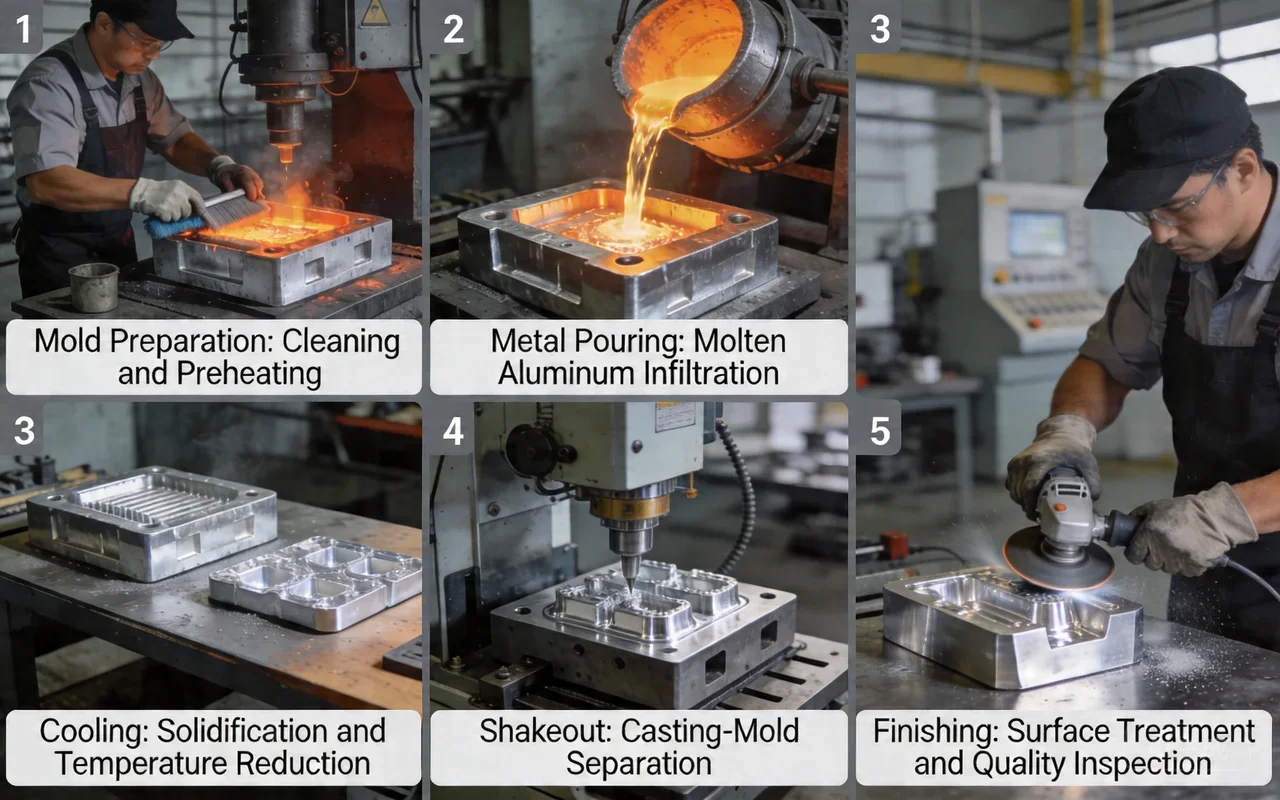

aluminum casting process workflow diagram, melting through inspection for defect prevention

Hot Tears & Cracks

Hot tears develop during solidification when shrinkage stress exceeds alloy ductility at temperature—often at abrupt section changes or near cores. Cracks may also appear during cooling or trim if parts are stressed while still hot. High-constraint mold designs and stiff alloy compositions increase susceptibility.

Mitigate with fillets, uniform wall thickness, controlled cooling rates, and alloy selection (lower copper/silicon ratios where ductility matters). Stress-relief or heat treatment per specification can reduce residual stress in structural castings.

Surface Defects

Surface roughness, flow lines, cold flakes, flash, veining, and solder (die sticking) affect appearance and sealing surfaces. Sand casting texture reflects grain size and mold compaction; die casting surfaces depend on die polish, temperature, and release agent consistency. Veining in sand molds arises from thermal expansion of silica; coatings and additives reduce it.

Laminations and oxide skins on gravity-cast surfaces may indicate pouring height or gating design issues. Water marks and staining often trace to cooling water chemistry or residual release agent. Cosmetic Class A surfaces for automotive or consumer products may require trim, media blast, and machining passes beyond standard as-cast finish.

Flash is trimmed mechanically; excessive flash signals worn dies or clamp issues. Post-cast finishing—shot blast, machining, anodizing—must account for surface condition. Our surface finish options page outlines achievable as-cast and post-process results.

Dimensional Inaccuracies

Mold shift, core shift, warpage, and spring-back cause features to fall outside tolerance. Tooling wear, uneven cooling, and locked-in stress from rapid quenching contribute. Die casting machines need consistent lock force and platen parallelism; sand molds need robust core setting and alignment pins.

Casting shrinkage factors differ by alloy and process; designers should apply foundry-recommended scale factors to CAD models rather than assuming steel shrinkage rates. Post-machining datum schemes should reference stable cast features to avoid stack-up error when multiple setups are required.

CMM inspection, gauge R&R studies, and SPC on critical dimensions catch drift before batches run non-conforming. Tooling maintenance schedules and temperature mapping extend dimensional stability over high-volume programs. Refer to our tolerance standards page for typical linear and geometric tolerances by process.

Prevention Best Practices

Effective defect prevention combines upfront simulation, documented process windows, trained operators, and closed-loop quality data. Standard operating procedures for melt preparation, shot parameters, and mold release should be revision-controlled. First-article and periodic capability studies validate that tooling changes do not reintroduce defects.

Implement a layered quality plan: incoming material inspection, in-process checks (temperature, shot monitoring, die temperature maps), and final dimensional and NDT sampling. Pareto analysis of defect types by cavity, shift, and alloy lot quickly isolates root cause. When defects correlate with a specific tool cavity, maintenance or steel replacement should precede parameter tweaking alone.

Training operators to recognize early warning signs—unusual shot noise, short fills, or oxide streaks—reduces batch-size impact. Document lessons learned in control plans shared with customers during APQP. Partner with a foundry that offers DFM review, radiographic capability, and corrective-action discipline. Linking defect trends to cost reduction initiatives turns quality investment into lower total cost of ownership.

Frequently Asked Questions

What is the most common defect in aluminum die castings?: Porosity—both gas porosity from trapped hydrogen or air and shrinkage porosity from inadequate feeding—is among the most frequent die casting defects and often drives scrap, leak failures, and machining issues.
Can porosity in aluminum castings be repaired?: Small surface pores may be sealed by impregnation resins for pressure-tight applications. Structural or widespread internal porosity usually requires process correction and re-casting rather than weld repair, which can introduce new defects.
How do you detect internal casting defects?: X-ray radiography, CT scanning, sectioning, and pressure decay testing are common methods. Die casters also use process monitoring, reduced-pressure tests on melt samples, and statistical control of key dimensions.
What causes cold shuts in aluminum castings?: Cold shuts occur when two metal fronts meet but do not fuse, often due to low melt temperature, thin sections, long flow paths, or excessive die lubricant. Increasing metal temperature, improving gating, and optimizing venting reduce misruns and cold shuts.
How does mold design prevent shrinkage defects?: Proper riser and chill placement, directional solidification, and adequate feed metal paths allow liquid aluminum to feed shrinkage as the part solidifies. Simulation software helps validate gate, riser, and cooling layout before tooling is cut.
When should I involve the foundry in defect analysis?: Involve the foundry at first article if defects appear, and whenever design, alloy, or volume changes occur. Early DFM and process sign-off prevents repeating the same defect mode in production.
